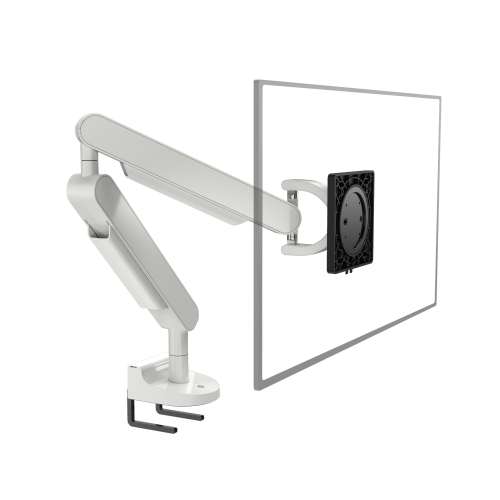

ZG1

ZG1

Elevate the functionality of your single monitor setup with the ZG1 Single Monitor Arm. This ergonomic solution optimizes workstations by elevating the monitor, reclaiming valuable desk space, and promoting proper posture for users. By effortlessly adjusting the monitor in three dimensions across the desktop with a user-friendly handle, individuals can tailor the display for optimal comfort and productivity. This versatile arm enables users to maintain an ideal seated position while working on the computer, writing, or referencing documents, reducing strain and enhancing overall well-being. Its seamless movement facilitates easy collaboration by showcasing monitor content to others and swiftly moving the monitor out of the way when not in use, allowing for a more versatile workspace. Moreover, streamlined cable management integrated throughout the arm eliminates clutter, enhancing both workstation performance and employee productivity. Experience a clutter-free, efficient workspace that empowers seamless workflow and supports a healthier, more productive work environment.

Optimal Performance, Infinite Design

We blend state-of-the-art workstation performance with exciting new design elements. The combination elevates the functionality and aesthetics of any work environment.

Flexible & Sturdy

360° arm swivel and monitor pivot, with 180° lock-out feature

Color Variations

Wide color range customizable to your requirements

Corporate Branding

Add your company logo to promote your brand

Top-Down Clamp

Standard clamp thickness 16-33 mm / 33-50 mm

Flexible & Sturdy

360° arm swivel and monitor pivot, with 180° lock-out feature

Color Variations

Wide color range customizable to your requirements

Corporate Branding

Add your company logo to promote your brand

Top-Down Clamp

Standard clamp thickness 16-33 mm / 33-50 mm

Top-Down Clamp
ZDock
ZHub
Monitor Size Supportable:
17″ to 34″ (monitor size for reference only, weight supportable should be key factor)
Monitor Weight Supportable:
3 to 11 Kg (6.6 – 24.2 Lbs)
Extended Arm Reach (from desk edge):
600 mm
Vertical Arm Adjustment Range:
290 mm
VESA Compliance:
75 mm² and 100 mm²
Arm Swivel Range (CW/CCW)²:
360° (with 180° lock-out feature to protect walls and screens)
Monitor Pivot Range:
360°
Monitor Tilt Range:
Forward 20° / Backward 35°
Quick Release for VESA Attachment:
For ease of monitor replacement
Quick Release for Mounting Attachment:
For ease of transition to crossbar mounting
Desk Fixing Options:
Top-down desk clamp
Standard Clamp Thickness Range:
16-33 mm / 33-50 mm
Warranty Period:
Limited 10 years
Sustainability:
29% recycled and 99% recyclable content
Cable Management:
Semi-concealed within upper and lower arm
